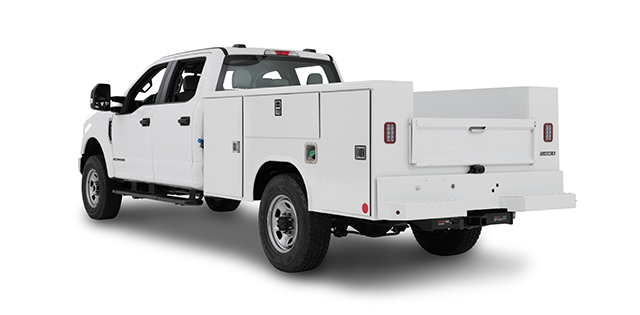

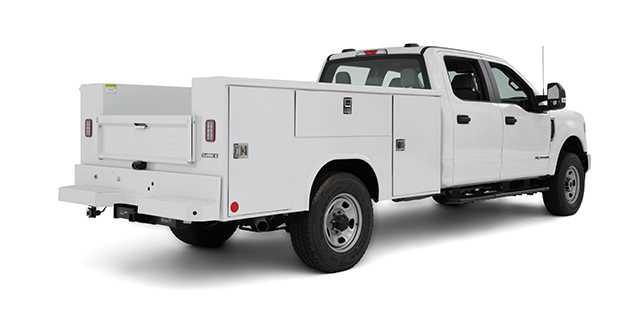

Classic II Steel Service Body

Get the durability and strength of premium steel to take on the toughest jobs. Our innovative locking system and an abundance of storage secures and organizes your tools. Built to last for the long haul.

 ALUMA-CHOCK®
ALUMA-CHOCK®

Aluminum chock block holders with chains to secure chock blocks. Can be ordered as single or dual per body side. Protects the service body from nicks and scratches from repeated insertion and removal of chock blocks. Available for both the Aluminum Classic II and Steel Classic II.

ALUMINUM SPLASH GUARDS
ALUMINUM SPLASH GUARDS

Bright finish aluminum treadplate splash guards are installed on the front of body panels and on top of the tailgate to produce an appealing, modern look and protect against regular wear and tear from road travel and loading. Available on the Aluminum Classic II and the Steel Classic II.

COMPARTMENT LIGHTING
COMPARTMENT LIGHTING

Ensure that you’ll be able to see your stored equipment and tools at any time of day with compartment lighting, which is automatically activated with Latch-Matic® keyless remote controller. These lights are programmed to go off automatically after 10 minutes or when the doors are locked, which helps to maximize the bulb’s lifespan. The lights feature impact-resistant Lexan lenses.

REMOVABLE OVERHEAD LADDER RACK
REMOVABLE OVERHEAD LADDER RACK

Removable steel ladder racks store ladders securely out of the way on the top of your service body.

MASTER LOCKING STEEL SLIDE BAR
MASTER LOCKING STEEL SLIDE BAR

Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a single handle and padlock. The master locking steel slide bar simultaneously locks an entire compartment side to keep your tools and other equipment safe. The bar, which works independently of the Latch-Matic remote system, is spring-loaded for easy operation.

PIPE VISE RACK
PIPE VISE RACK

Rugged steel construction helps to maintain a robust and durable grip on all of your pipes regardless of size, design or material. The rack holds pipe sections securely in place, allowing you to maximize the available space on your service body. Available on both the Aluminum Classic II and the Steel Classic II.

 REMOVABLE SIDE-MOUNT LADDER RACK
REMOVABLE SIDE-MOUNT LADDER RACK

Offering a different orientation for people who want the increased functionality of a ladder rack without the particular placement of an overhead mount, the removable side-mount ladder rack is available in angular and flat rack designs for both the Aluminum Classic II and Steel Classic II service bodies. You can remove this mount when not in use.

CLASSIC II STEEL SERVICE BODY - Single Wheel

MODEL APPROX. WT. CAB-TO-AXLE A B C D APPROX. COMPARTMENT CLEAR DOOR OPENINGS
E F G H I
STANDARD
**78-SWs 882 lbs. 40” 18” 42” 18” 78” 12-1/2” x 33-3/8” 40-1/2” x 11-7/8” 12-1/2” x 33-3/8” 56-1/2” x 11-7/8” 12-1/2” x 16-1/4”
82F-SW 957 lbs. 40” 17” 42” 23” 82” 11-1/2” x 33-3/8” 40-1/2” x 11-7/8” 17-1/2” x 33-3/8” 66-1/2” x 11-7/8” 17-1/2” x 16-1/4”
*U98-SWs 1046 lbs. 56” 28” 47” 23” 98” 22-1/2” x 33-3/8” 45-1/2” x 11-7/8” 17-1/2” x 33-3/8” 66-1/2” x 11-7/8” 17-1/2” x 16-1/4”
*U108-SWs 1158 lbs. 60” 33” 47” 28” 108” 27-1/2” x 33-3/8” 45-1/2” x 11-7/8” 22-1/2” x 33-3/8” 71-1/2” x 11-7/8” 22-1/2” x 16-1/4”
Low Profile
**LP-78SWs 813 lbs. 40” 18” 42” 18” 78” 12-1/2” x 28-3/8” 40-1/2” x 6-7/8” 12-1/2” x 28-3/8” 56-1/2” x 6-7/8” 12-1/2” x 16-1/4”
LP82SWs 885 lbs. 40” 17” 42” 23” 82” 11-1/2” x 28-3/8” 40-1/2” x 6-7/8” 17-1/2” x 28-3/8” 61-1/2” x 6-7/8” 17-1/2” x 16-1/4”
*ULP98SWs 965 lbs. 56” 28” 47” 23” 98” 22-1/2” x 28-3/8” 45-1/2” x 6-7/8” 17-1/2” x 28-3/8” 66-1/2” x 6-7/8” 17-1/2” x 16-1/4”
*ULP108-SWs 1072 lbs. 60” 33” 47” 28” 108” 27-1/2” x 28-3/8” 45-1/2” x 6-7/8” 22-1/2” x 28-3/8” 71-1/2” x 6-7/8” 22-1/2” x 16-1/4”

Compartment Layout: Standard

“A” Compartment Layout

“B” Compartment Layout

Rear View

Compartment Layout: Low Profile

“A” Compartment Layout

“B” Compartment Layout

Rear View

CLASSIC II STEEL SERVICE BODY - Dual Wheel

MODEL APPROX. WT. CAB-TO-AXLE A B C APPROX. COMPARTMENT CLEAR DOOR OPENINGS J K L M
E F G H I
STANDARD
U98-DWs 1164 lbs. 56” 91-1/2” 48-1/2” 21-1/2” 22-1/2” x33-3/8” 45-1/2” x11-7/8” 17-1/2” x33-3/8” 66-1/2” x11-7/8” 17-1/2” x16-1/4” 28” 47” 23” 98”
U108-DW 1251 lbs. 60” 91-1/2” 48-1/2” 21-1/2” 27-1/2” x33-3/8” 45-1/2” x11-7/8” 22-1/2” x33-3/8” 71-1/2” x11-7/8” 22-1/2” x16-1/4” 33” 47” 23” 108”
LOW PROFILE
ULP98-DWs 1076 lbs. 56” 91-1/2” 48-1/2” 21-1/2” 22-1/2” x28-3/8” 45-1/2” x6-7/8” 17-1/2” x28-3/8” 66-1/2” x6-7/8” 17-1/2” x16-1/4” 28” 47” 23” 98”
ULP108-DW 1161 lbs. 60” 91-1/2” 48-1/2” 21-1/2” 27-1/2” x28-3/8” 45-1/2” x6-7/8” 22-1/2” x28-3/8” 71-1/2” x6-7/8” 22-1/2” x16-1/4” 33” 47” 28” 108”
MODEL APPROX. WT. CAB-TO-AXLE APPROX. COMPARTMENT CLEAR DOOR OPENINGS
A B C D E F
UR132AB-DW 1502 lbs. 84″ 27-1/2″x33-3/8” 17-1/2″x33-3/8” 45-1/2″x11-7/8” 22-1/2″x33-3/8” 22-1/2″x16-1/4″ 71-1/2″x11-7/8”
ULPR132AB-DW 1392 lbs. 84″ 27-1/2″x28-3/8″ 17-1/2″x28-3/8″ 45-1/2″x6-7/8” 22-1/2″x28-3/8″ 22-1/2″x16-1/4″ 71-1/2″x6-7/8”
USR132AB-DW 1757 lbs. 84″ 27-1/2″x33-3/8” 17-1/2″x33-3/8” 45-1/2″x11-7/8” 22-1/2″x33-3/8” 22-1/2″x16-1/4″ 71-1/2″x11-7/8”
USLPR132AB-DW 1652 lbs. 84″ 27-1/2″x28-3/8″ 17-1/2″x28-3/8″ 45-1/2″x6-7/8” 22-1/2″x28-3/8″ 22-1/2″x16-1/4″ 71-1/2″x6-7/8”

Compartment Layout: Standard

“A” Compartment Layout

“B” Compartment Layout

Rear View

Compartment Layout: Low Profile

“A” Compartment Layout

“B” Compartment Layout

Rear View

Compartment Layout: 132

“A” Compartment Layout

“B” Compartment Layout

Rear View

Service Bodies Brochure
Service Bodies Brochure
Download

Features

LED Lights

LED Lights

Reading service and enclosed utility bodies are equipped with long-lasting LED lights for worry-free, low-maintenance service, including clearance, marker, stop, tail, turn and reverse lights. You’ll improve your vehicle’s visibility and safety in any environment.

Stainless Steel Rotary Locks With Paddle Handles

Stainless Steel Rotary Locks With Paddle Handles

Reading’s stainless steel locks and paddle handles have a clean, fastener-free appearance that’s both professional and functional.   Locks and handles include a pry-resistant, automotive-style “free-wheeling” design with double-bitted keys.   Handles are gasketed and include O-rings to prevent water intrusion.  Locks are compatible with Reading’s optional Latch-Matic® remote locking system.

A60 Galvannealed Steel Construction

A60 Galvannealed Steel Construction

Premium A60 galvannealed steel features a bonded zinc alloy surface that is exceptionally hard, scratch resistant and corrosion resistant.

Galvanized Shelves

Galvanized Shelves

Designed for heavy-duty usage, galvanized shelves provide 2″ dividers for small item storage. Also available: full access between all vertical compartments for more extended tool storage.

Hidden Hinges

Hidden Hinges

Reading’s signature hidden hinges are designed to resist forcible entry, and provide the ultimate in clean, professional appearance. This robust and concealed hinge design provides protection against corrosion without requiring frequent lubrication or maintenance. They are fully adjustable and easy to replace without special tools.

Seamless Wheelhouse Panel

Seamless Wheelhouse Panel

When your truck kicks up dirt, mud, and salt, that buildup can cause damage and corrosion. Reading service and enclosed utility bodies are designed with with seamless wheelhouse panels to give dirt, moisture and corrosives fewer places to collect.
